Adaptor Reducer

Adaptor Reducer

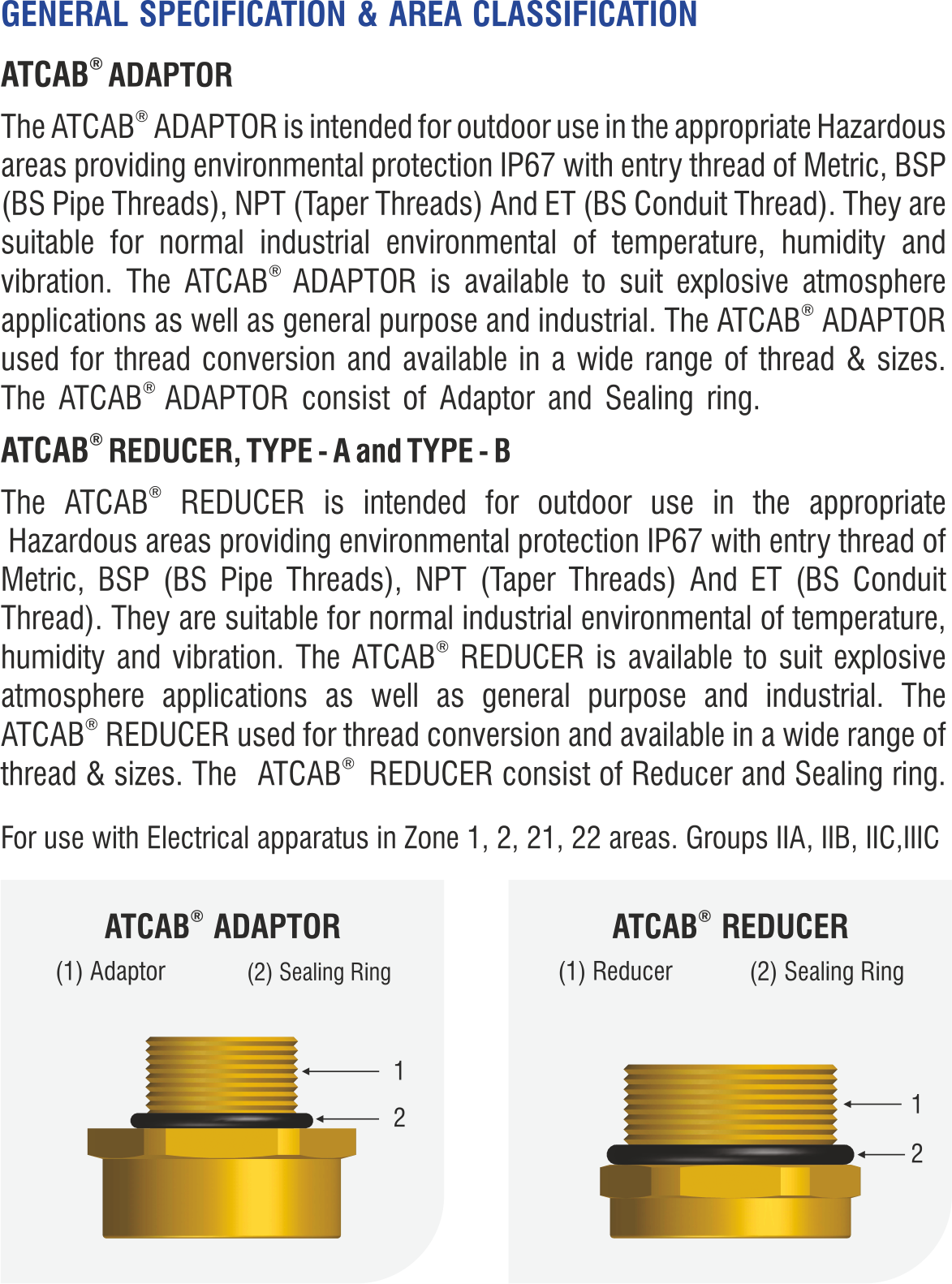

GENERAL SPECIFICATION & AREA CLASSIFICATION

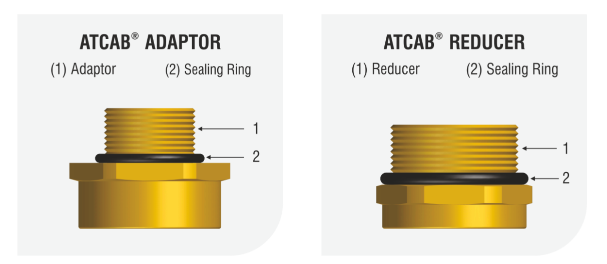

ATCAB@ADAPTOR

The ATCAB@ADAPTOR is intended for outdoor use in the appropriate Hazardou areas providing environmental protection IP67 with entry thread of Metric, BSP (BS Pipe Threads), NPT (Taper Threads) And ET (BS Conduit Thread). They are suitable for normal industrial environmental of temperature, humidity and vibration. The ATCABS ADAPTOR is available to suit explosive atmosphere applications as well as general purpose and industrial. The ATCAB@ ADAPTOR used for thread conversion and available in a wide range of thread & sizes. The ATCAB@ ADAPTOR consist of Adaptor and Sealing ring.

ATCAB’ REDUCER, -A -B

The ATCAB’ REDUCER is intended for outdoor use in the appropriate Hazardous areas providing environmental protection IP67 with entry thread of Metric, BSP (BS Pipe Threads), NPT (Taper Threads) And ET (BS Conduit Thread). They are suitable for normal industrial environmental of temperature, humidity and vibration. The ATCAB’ REDUCER is available to suit explosive atmosphere applications as well as general purpose and industrial. The ATCAB’ REDUCER used for thread conversion and available in a wide range of thread & sizes. The ATCAB’ REDUCER consist of Reducer and Sealing ring.
For use with Electrical apparatus in Zone 1, 2, 21, 22 areas. Groups IIA, 11B, IIC,IIIC

DECLARATION

Design Standard  :EN 60079-09012+A112013, EN 60079-1:2014, EN 60079-31:2014,

Certification         : II 2 GD Exdb IIC Gb/Exe IIC Gb Extb IIIC Db IP67

Ingress Protection :  IP 67

Certificate-Adaptor : T117ATEX 824 X – Ex Notified Body No. 1354

Certificate-Reducer :  T117ATEX 825 X – Ex Notified Body No. 1354

Marking-Adaptor    :

Marking-Reducer     :

OPTIONS

Materials : BRASS: BS 2874 CZ121 / IS 319 gr.l Stainless Steel : ASTM A314 gr. 304/316 L Mild Steel

Threads    :ISO Metric National pipe Thread (NPT) British Standard pipe (BSP) Imperial (ET)

Plating      :Brass Finish / Nickel Finish /Chrome Finish

Accessories :Lock Nut, Earth Tag, IP Nylon Washer, Serrated Washen PVC / LSF Shroud.

Atlas-A4-Certify-Cable-Gland-

Dimension Chart
SHAPE ‘A’ ADAPTOR DIMENSIONS
SHAPE ‘R’ REDUCER DIMENSIONS

Dimension-Chart

Adaptor & Reducer
Male – Female Selection Chart

Male-Female-Selection-Chart
FEMALE METRIC
M12x1.5 M16x1.5 M20x1.5 M25x1.5 M32x1.5 M40x1.5 M50x1.5 M63x1.5 M75x1.5 M90x1.5
MALE
METRIC M12x1.5 A02 A03 A04
M16x1.5 R01 A03 A04
M20x1.5 R02 R02 A04 A05 A06
M25x1.5 R03 R03 R03 A05 A06 A07
M32x1.5 R04 R04 R04 A06 A07 A08
M40x1.5 R05 R05 R05 A07 A08
M50x1.5 R06 R06 R06 R06 A08 A09
M63x1.5 R07 R07 R07 R07 A09 A10
M75x1.5 R08 R08 R08 R08 A12
M90x1.5 R09
FEMALE NPT
3/8" NPT 1/2" NPT 3/4" NPT 1" NPT 1.1/4" NPT 1.1/2" NPT 2" NPT 2.1/2" NPT 3" NPT
MALE
METRIC M12x1.5 A02 A111 A112
M16x1.5 A02 A111 A112
M20x1.5 R02 A111 A112 A113
M25x1.5 R03 R03 A112 A113 A114
M32x1.5 R04 R04 R04 A113 A114 A115
M40x1.5 R05 R05 R05 A114 A115
M50x1.5 R06 R06 R06 R06 A115 A116
M63x1.5 R07 R07 R07 R07 A116 A117
M75x1.5 R08 R08 R08 R08 A117 A120
M90x1.5 R09 R09 R09 R09 A120
FEMALE BSPT
3/8" 1/2" 3/4" 1" 1.1/4" 1.1/2" 2" 2.1/2" 3"
MALE
METRIC M12x1.5 A02 A111
M16x1.5 A02 A111 A112
M20x1.5 R02 R03 A112 A159
M25x1.5 R03 R03 A112 A159 A160
M32x1.5 R04 R04 R04 A159 A160 A115
M40x1.5 R05 R05 R05 A160 A115 A116
M50x1.5 R06 R06 R06 A115 A116 A161
M63x1.5 R07 R07 R07 A116 A161 A118
M75x1.5 R08 R08 A162 A120
M90x1.5 R09 R09 A120
FEMALE PG
PG 7 PG 9 PG 11 PG 13.5 PG 16 PG 21 PG 29 PG 36 PG 42 PG 48
MALE
METRIC M12x1.5 A84 A01 A02
M16x1.5 R01 A01 A02 A03
M20x1.5 R02 R02 A02 A03 A85
M25x1.5 R03 R03 R03 R03 A89 A86
M32x1.5 R04 R04 R04 R04 R04 A86 A06
M40x1.5 R05 R05 R05 A06 A07
M50x1.5 /td> R06 R06 R06 A07 A87
M63x1.5 R07 R07 R07 A90
M75x1.5 R08 R08 R08
M90x1.5 R09 R09
FEMALE BSP
G 3/8" G 1/2" G 3/4" G 1" G 1.1/4" G 1.1/2" G 2" G 2.1/2" G 3"
MALE
METRIC M12x1.5 A02 A03
M16x1.5 A02 A03 A04
M20x1.5 R02 A03 A04 A50
M25x1.5 R03 R03 A04 A50 A51
M32x1.5 R04 R04 R04 R04 R04 A86 A06
M40x1.5 R05 R05 R05 A06 A07
M50x1.5 R06 R06 A52 A53 A09
M63x1.5 R07 R07 A53 A09
M75x1.5 R08 R28 A11 A55
M90x1.5 R09 R09 A55
FEMALE B.S.CONE (ET)
ET 1/2" ET 5/8" ET 3/4" ET 1" ET 1.1/4" ET 1.1/2" ET 2" ET 2.1/2" ET 3" ET 3.1/2"
MALE
METRIC M12x1.5 A02
M16x1.5 A02 A03
M20x1.5 R02 A03 A04 A05
M25x1.5 R03 R03 A04 A05 A06
M32x1.5 R04 R04 A04 A05 A06 A07
M40x1.5 R05 R05 R05 A06 A07 A08
M50x1.5 R06 R06 R06 A07 A08 A09
M63x1.5 R07 R07 R07 A08 A09 A10
M75x1.5 R08 R08 R08 A11 A12
M90x1.5 R09 R09 A12
FEMALE METRIC
M12x1.5 M16x1.5 M20x1.5 M25x1.5 M32x1.5 M40x1.5 M50x1.5 M63x1.5 M75x1.5 M90x1.5
MALE
NPT 3/8" NPT R01 A02 A03 A04
1/2" NPT R21 R21 A27 A28 A29
3/4" NPT R22 R22 R22 A28 A29 A30
1" NPT R23 R23 R23 A32 A33 A34
1.1/4" NPT R24 R24 R24 A33 A34 A35
1.1/2" NPT R25 R25 R25 A38 A39 A40
2" NPT R26 R26 R26 A39 A40
2.1/2" NPT R27 R27 R27 A42 A43
3" NPT R28 R28 R28 R28 A43
M90x1.5 R09 R09 A12
FEMALE NPT
3/8" NPT 1/2" NPT 3/4" NPT 1" NPT 1.1/4" NPT 1.1/2" NPT 2" NPT 2.1/2" NPT 3" NPT
MALE
NPT 3/8" NPT A111 A112 A113
1/2" NPT A99 A137 A138 A139
3/4" NPT R22 R22 A138 A139 A140
1" NPT R23 R23 R23 A142 A143 A144
1.1/4" NPT R24 R24 R24 A143 A144 A145
1.1/2" NPT R25 R25 R25 A148 A149 A150
2" NPT R26 R26 A146 A150
2.1/2" NPT R27 R27 A152
3" NPT R28 R28
FEMALE BSPT
3/8" 1/2" 3/4" 1" 1.1/4" 1.1/2" 2" 2.1/2" 3"
MALE
NPT 3/8" NPT A111 A112
1/2" NPT A99 A137 A168
3/4" NPT R22 R22 A168 A169
1" NPT R23 R23 R23 A171 A143
1.1/4" NPT R24 R24 R24 R24 A143 A144
1.1/2" NPT R25 R25 R25 A148 A173
2" NPT R26 R26 R26 R26 A173 A150
2.1/2" NPT R27 R27 R27 A152
3" NPT R28 R28
FEMALE BSP
G 3/8" G 1/2" G 3/4" G 1" G 1.1/4" G 1.1/2" G 2" G 2.1/2" G 3"
MALE
NPT 3/8" NPT A02 A03 A04
1/2" NPT R21 A27 A28 A67
3/4" NPT R22 R22 A28 A67 A68
1" NPT R23 R23 R23 A70 A71 A72
1.1/4" NPT R24 R24 R24 A71 A72 A73
1.1/2" NPT R25 R25 R25 A75 A76 A40
2" NPT R26 R26 R26 A76 A40 A77
2.1/2" NPT R27 R27 R27 A42 A78
3" NPT R28 R28 R28 A78
FEMALE B.S.CONE (ET)
ET 1/2" ET 5/8" ET 3/4" ET 1" ET 1.1/4" ET 1.1/2" ET 2" ET 2.1/2" ET 3" ET 3.1/2"
MALE
NPT 3/8" NPT A02 A02 A03
1/2" NPT R21 A27 A28
3/4" NPT R22 R22 A28 A29
1" NPT R23 R23 R23 A32 A33
1.1/4" NPT R24 R24 R24 A33 A34
1.1/2" NPT R25 R25 R25 A34 A39 A40
2" NPT R26 R26 R26 A39 A40
2.1/2" NPT R27 R27 R27 A42 A43
FEMALE METRIC
M12x1.5 M16x1.5 M20x1.5 M25x1.5 M32x1.5 M40x1.5 M50x1.5 M63x1.5 M75x1.5 M90x1.5
MALE
BSPT 3/8" R01 A03 A04
1/2" R21 R21 A27 A28 A29
3/4" NPT R22 R22 R22 A28 A29 A30
1" R29 R29 R29 A44 A45 A46
1.1/4" R30 R30 R30 A45 A46 A47
1.1/2" R25 R25 R25 A38 A39
2" R26 R26 R26 A39 A40
2.1/2" R31 R31 R31 A42 A43
3" R28 R28 R28 A43
FEMALE NPT
3/8" NPT 1/2" NPT 3/4" NPT 1" NPT 1.1/4" NPT 1.1/2" NPT 2" NPT 2.1/2" NPT 3" NPT
MALE
BSPT 3/8" R01 A03 A04
1/2" R21 R21 A27 A28 A29
3/4" R22 R22 R22 A28 A29 A30
1" R29 R29 R29 A44 A45 A46
1.1/4" R30 R30 R30 A45 A46 A47
1.1/2" R25 R25 R25 A38 A39
2" R26 R26 R26 A39 A40
2.1/2" R31 R31 R31 A42
3" R28 R28 R28
FEMALE NPT
3/8" NPT 1/2" NPT 3/4" NPT 1" NPT 1.1/4" NPT 1.1/2" NPT 2" NPT 2.1/2" NPT 3" NPT
MALE
BSPT 3/8" A111 A112
1/2" R21 A137 A29
3/4" R22 R22 A138 A139
1" R29 R29 R29 A154 A155
1.1/4" R30 R30 R30 A155 A156
1.1/2" R25 R25 R25 A148 A149
2" R26 R26 R26 A149 A150
2.1/2" R31 R31 R31 A152
3" R28 R28 R28
FEMALE BSPT
3/8" 1/2" 3/4" 1" 1.1/4" 1.1/2" 2" 2.1/2" 3"
MALE
BSPT 3/8" A111 A112
1/2" R21 A137 A168
3/4" R22 R22 A168 A169
1" R29 R29 R29 A176 A155
1.1/4" R30 R30 R30 A155 A156
1.1/2" R25 R25 R25 A148 A173
2" R26 R26 R26 A173 A150
2.1/2" R31 R31 R31 A152
3" R28 R28 R28
FEMALE BSP
G 3/8" G 1/2" G 3/4" G 1" G 1.1/4" G 1.1/2" G 2" G 2.1/2" G 3"
MALE
BSPT 3/8" A02 A03 A04
1/2" R21 A27 A28 A67
3/4" R22 R22 A28 A67 A68
1" R29 R29 R29 A79 A80 A81
1.1/4" R30 R30 R30 A80 A81 A82
1.1/2" R25 R25 R25 A75 A76 A40
2" R26 R26 R26 A76 A40 A77
2.1/2" R31 R31 R31 A42 A78
3" R28 R28 R28 A78
FEMALE B.S.CONE (ET)
ET 1/2" ET 5/8" ET 3/4" ET 1" ET 1.1/4" ET 1.1/2" ET 2" ET 2.1/2" ET 3" ET 3.1/2"
MALE
BSPT 3/8" A02 A03
1/2" R21 A27 A28
3/4" R22 R22 A28 A29
1" R29 R29 R29 A44 A45
1.1/4" R30 R30 R30 A46 A46
1.1/2" R25 R25 R25 A38 A39
2" R26 R26 R26 A39 A40
2.1/2" R31 R31 R31 A42 A43
3" R28 R28 R28 A43
FEMALE METRIC
M12x1.5 M16x1.5 M20x1.5 M25x1.5 M32x1.5 M40x1.5 M50x1.5 M63x1.5 M75x1.5 M90x1.5
MALE
PG PG 7 A01 A02
PG 9 A01 A02 A03
PG 11 R02 A02 A03 A04
PG 13.5 R10 R10 A03 A04 A05
PG 16 R10 R10 A03 A04 A05 A06
PG 21 R16 R16 A04 A05 A07
PG 29 R17 R17 R17 A06 A07 A08
PG 36 R18 R18 R18 A07 A08 A09
PG 42 R19 R19 A178 A179 A11 A12
PG 48 R20 R20 A179 A11 A12
FEMALE PG
PG 7 PG 9 PG 11 PG 13.5 PG 16 PG 21 PG 29 PG 36 PG 42 PG 48
MALE
PG PG 7 A01 A02 A03
PG 9 A01 A02 A03 A85
PG 11 R02 A02 A03 A85 A86
PG 13.5 R10 R10 A85 A86 A06
PG 16 R10 R10 R10 A86 A06 A07
PG 21 R16 R16 R16 A06 A07 A87
PG 29 R17 R17 R17 A07 A87 A88
PG 36 R18 R18 R18 A88
PG 42 R19 R19 R19 A98
PG 48 R20 R20 R20
FEMALE METRIC
M12x1.5 M16x1.5 M20x1.5 M25x1.5 M32x1.5 M40x1.5 M50x1.5 M63x1.5 M75x1.5 M90x1.5
MALE
PG G 3/8" R01 A02 A03 A04
G 1/2" R02 R02 A03 A04 A05
G 3/4" R03 R03 R03 A04 A05 A06
G 1" R04 R04 R04 A13 A14 A15
G 1.1/4" R05 R05 R05 A19 A20 A21
G 1.1/2" R06 R06 R06 A20 A21 A22
G 2" R07 R07 R07 A24 A25 A26
G 2.1/2" R08 R08 R08 A11 A12
G 3" R09 R09 R09 A12
FEMALE NPT
3/8" NPT 1/2" NPT 3/4" NPT 1" NPT 1.1/4" NPT 1.1/2" NPT 2" NPT 2.1/2" NPT 3" NPT
MALE
BSP G 3/8" A02 A111 A112
G 1/2" R01 A111 A112 A113
G 3/4" R03 R03 A112 A113 A114
G 1" R11 R11 R11 A113 A114 A115
G 1.1/4" R12 R12 R12 A114 A115 A116
G 1.1/2" R13 R13 R13 A115 A116 A117
G 2" R14 R14 R14 A116 A117
G 2.1/2" R08 R08 R08 A119 A120
G 3" R15 R15 R15 A120
FEMALE BSPT
3/8" 1/2" 3/4" 1" 1.1/4" 1.1/2" 2" 2.1/2" 3"
MALE
BSP G 3/8" A111 A112
G 1/2" R01 A112 A159
G 3/4" R03 R03 A159 A160
G 1" R11 R11 R11 A164 A123
G 1.1/4" R12 R12 R12 A128 A129
G 1.1/2" R13 R13 R13 A129
G 2" R14 R14 R14 A168 A134
G 2.1/2" R08 R08 R08 A120
G 3" R15 R15 R15
FEMALE BSP
G 3/8" G 1/2" G 3/4" G 1" G 1.1/4" G 1.1/2" G 2" G 2.1/2" G 3"
MALE
BSP G 3/8" A03 A04 A50
G 1/2" R10 A04 A50 A51
G 3/4" R03 R03 A50 A51 A52
G 1" R11 R11 R11 A57 A58 A59
G 1.1/4" R12 R12 R12 A62 A63 A22
G 1.1/2" R13 R13 R13 A63 A22 A64
G 2" R14 R14 R14 A25 A66
G 2.1/2" R08 R08 R08 A55
G 3" R15 R15 R15
FEMALE B.S.CONE (ET)
ET 1/2" ET 5/8" ET 3/4" ET 1" ET 1.1/4" ET 1.1/2" ET 2" ET 2.1/2" ET 3" ET 3.1/2"
MALE
PG G 3/8" A02 A03 A04
G 1/2" R02 A03 A04 A05
G 3/4" R03 A03 A04 A05 A06
G 1" R04 R04 R04 A13 A14 A15
G 1.1/4" R05 R05 A05 A19 A20 A21
G 1.1/2" R06 R06 R06 A20 A21 A22
G 2" R07 R07 A07 A24 A25 A26
G 2.1/2" R08 R08 A08 A11 A12
G 3" R09 R09 R09 A12
FEMALE METRIC
M12x1.5 M16x1.5 M20x1.5 M25x1.5 M32x1.5 M40x1.5 M50x1.5 M63x1.5 M75x1.5 M90x1.5
MALE
B.S.CONE (ET) ET 1/2" A01 A02 A03
ET 5/8" R01 A02 A03 A04 A05
ET 3/4" R02 R02 A03 A04 A05
ET 1" R03 R03 R03 A04 A05 A06
ET 1.1/4" R04 R04 R04 A13 A06 A07
ET 1.1/2" R05 R05 R05 A06 A07 A21
ET 2" R06 R06 R06 A07 A21 A22
ET 2.1/2" R07 R07 R07 A24 A25 A26
ET 3" R08 R08 R08 A11 A12
ET 3.1/2" R09 R09 R09 A12
FEMALE NPT
3/8" NPT 1/2" NPT 3/4" NPT 1" NPT 1.1/4" NPT 1.1/2" NPT 2" NPT 2.1/2" NPT 3" NPT
MALE
BSP ET 1/2" A02 A111
ET 5/8" A02 A111 A112
ET 3/4" A02 A111 A112 A113
ET 1" R03 R03 A112 A113 A114
ET 1.1/4" R04 R04 R04 A113 A114 A115
ET 1.1/2" R05 R05 R05 A114 A115 A116
ET 2" R06 R06 R06 A115 A116 A117
ET 2.1/2" R07 R07 R07 A116 A117 A118
ET 3" R08 R08 R08 A119 A120
ET 3.1/2" R09 R09 R09 A120
FEMALE BSPT
3/8" 1/2" 3/4" 1" 1.1/4" 1.1/2" 2" 2.1/2" 3"
MALE
B.S.CONE (ET) ET 1/2" A02 A111
ET 5/8" A02 A111 A112
ET 3/4" A02 A111 A112 A159
ET 1" R03 R03 A112 A159 A160
ET 1.1/4" R04 R04 R04 A159 A160 A115
ET 1.1/2" R05 R05 R05 A160 A115 A116
ET 2" R06 R06 R06 A115 A116 A161
ET 2.1/2" R07 R07 R07 A116 A161
ET 3" R08 R08 R08 A162
ET 3.1/2" R09 R09 R09
FEMALE BSPT
3/8" 1/2" 3/4" 1" 1.1/4" 1.1/2" 2" 2.1/2" 3"
MALE
B.S.CONE (ET) ET 1/2" A02 A111
ET 5/8" A02 A111 A112
ET 3/4" A02 A111 A112 A159
ET 1" R03 R03 A112 A159 A160
ET 1.1/4" R04 R04 R04 A159 A160 A115
ET 1.1/2" R05 R05 R05 A160 A115 A116
ET 2" R06 R06 R06 A115 A116 A161
ET 2.1/2" R07 R07 R07 A116 A161
ET 3" R08 R08 R08 A162
ET 3.1/2" R09 R09 R09
FEMALE BSPT
3/8" 1/2" 3/4" 1" 1.1/4" 1.1/2" 2" 2.1/2" 3"
MALE
B.S.CONE (ET) ET 1/2" A02 A111
ET 5/8" A02 A111 A112
ET 3/4" A02 A111 A112 A159
ET 1" R03 R03 A112 A159 A160
ET 1.1/4" R04 R04 R04 A159 A160 A115
ET 1.1/2" R05 R05 R05 A160 A115 A116
ET 2" R06 R06 R06 A115 A116 A161
ET 2.1/2" R07 R07 R07 A116 A161
ET 3" R08 R08 R08 A162
ET 3.1/2" R09 R09 R09
FEMALE BSP
G 3/8" G 1/2" G 3/4" G 1" G 1.1/4" G 1.1/2" G 2" G 2.1/2" G 3"
MALE
B.S.CONE (ET) ET 1/2" A02 A02 A03 A04
ET 5/8" A02 A03 A04 A50
ET 3/4" A02 A03 A04 A50 A51
ET 1" R03 R03 A04 A50 A51 A52
ET 1.1/4" R04 R04 R04 A50 A51 A52 A53
ET 1.1/2" R05 R05 R05 A51 A52 A53 A09
ET 2" R06 R06 R06 A52 A53 A09 A54
ET 2.1/2" R07 R07 R07 A53 A09 A54
ET 3" R08 R08 R08 A11 A55
ET 3.1/2" R09 R09 R09 A55
FEMALE B.S.CONE (ET)
ET 1/2" ET 5/8" ET 3/4" ET 1" ET 1.1/4" ET 1.1/2" ET 2" ET 2.1/2" ET 3" ET 3.1/2"
MALE
B.S.CONE (ET) ET 1/2" A02 A03 A04
ET 5/8" A03 A04 A05
ET 3/4" R02 A04 A05 A06
ET 1" R03 R03 A05 A06 A07
ET 1.1/4" R04 R04 A06 A07 A08
ET 1.1/2" R05 R05 R05 A07 A08 A09
ET 2" R06 R06 R06 A08 A09 A10
ET 2.1/2" R08 R08 R08 A09 A10
ET 3" R08 R08 R08 A12
ET 3.1/2" R09 R09 R09

Atlas Across Borders

Connect with Atlas Metals and let us know your requirement. Be assured of quality solutions.



    Discover other products
