TECHNICAL DETAILS
Size :M12 M 63
Standard :BS EN50262 : 1999
Ingress Protection : IP68
Operating Temp. :-200C to +1200C.
Material : Brass BS 2874 CZ121 Pb3.
Thread : Metric
Finish : Nickel Finish, Natural Brass Finish
Accessories : Matching Accessories available like Lock Nuts & ‘0’ Ring.

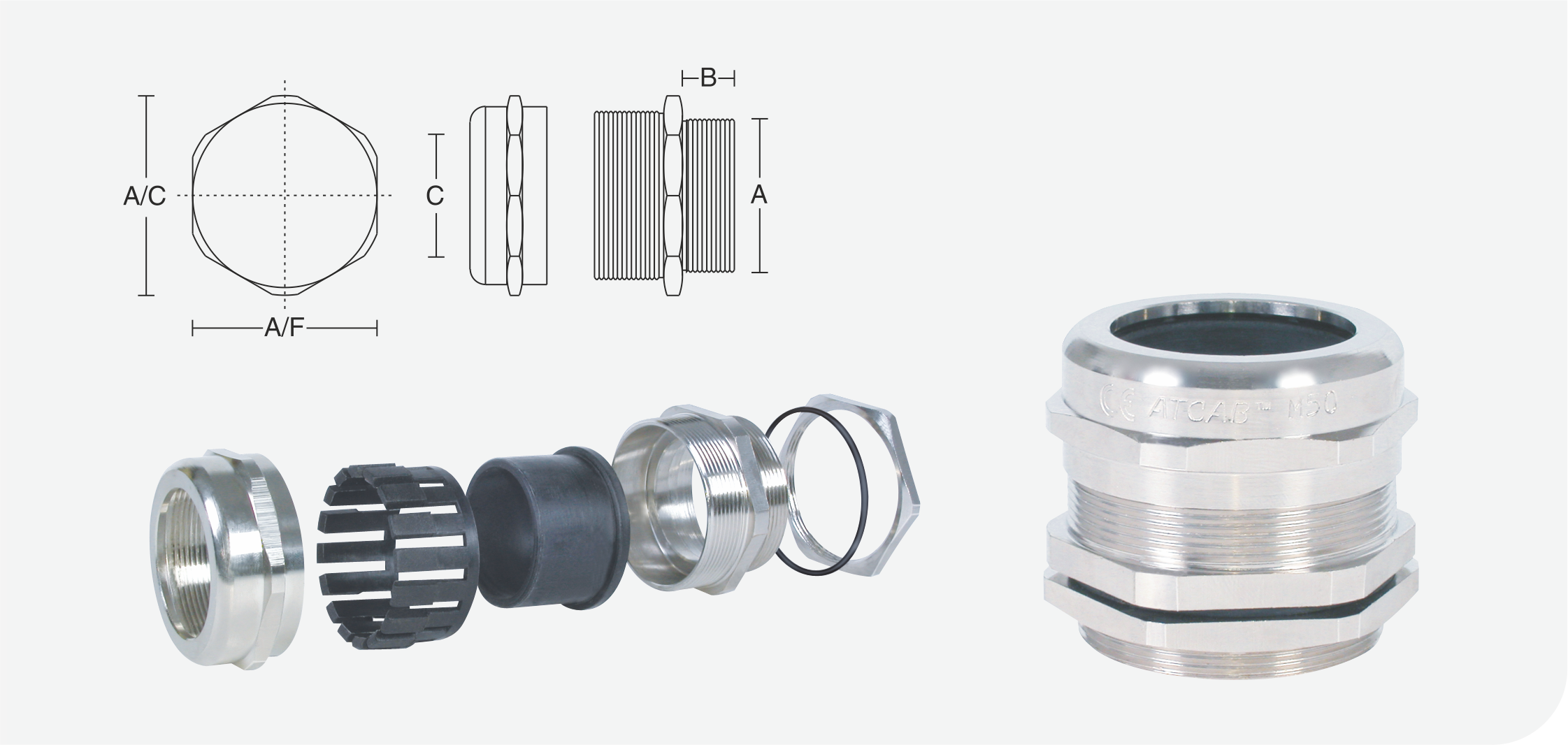

| CODE No. | THREAD SIZE (A) | ENTRY THREAD LENGTH (B) | C | A / F | A / C | "CABLE CLAMPING RANGE Ø (MIN - MAX) MM | TIGHTENING TORQUE IN Nm | INSTALATION TORQUE IN Nm | IMPACT TEST CATEGORY |
|---|---|---|---|---|---|---|---|---|---|
| AT-CEM12 | M 12 | 12 | 7.00 | 14.00 | 15.50 | 3 - 6.5 | 0.10 | 8 | 3 |
| AT-CEM12-1 | M 12 | 12 | 7.00 | 14.00 | 15.50 | 2 - 5 | 0.10 | 8 | 3 |
| AT-CEM16 | M 16 | 16 | 9.50 | 18.00 | 19.50 | 4 - 8 | 0.10 | 10 | 3 |
| AT-CEM16-1 | M 16 | 16 | 9.50 | 18.00 | 19.50 | 2 - 6 | 0.10 | 10 | 3 |
| AT-CEM20 | M 20 | 20 | 12.50 | 22.00 | 24.50 | 6 - 12 | 0.35 | 12 | 3 |
| AT-CEM20-1 | M 20 | 20 | 12.50 | 22.00 | 24.50 | 5 - 9 | 0.15 | 12 | 3 |
| AT-CEM25 | M 25 | 25 | 18.50 | 31.00 | 34.00 | 13 - 18 | 0.60 | 12 | 4 |
| AT-CEM25-1 | M 25 | 25 | 18.50 | 31.00 | 34.00 | 9 - 16 | 0.35 | 12 | 4 |
| AT-CEM32 | M 32 | 32 | 25.50 | 40.00 | 44.50 | 18 - 25 | 0.80 | 18 | 4 |
| AT-CEM32-1 | M 32 | 32 | 25.50 | 40.00 | 44.50 | 13 - 20 | 0.60 | 18 | 4 |
| AT-CEM40 | M 40 | 40 | 33.00 | 50.00 | 55.00 | 25 - 32 | 0.90 | 18 | 5 |
| AT-CEM40-1 | M 40 | 40 | 33.00 | 50.00 | 55.00 | 20 - 26 | 0.80 | 18 | 5 |
| AT-CEM50 | M 50 | 50 | 39.00 | 55.00 | 60.00 | 32 - 38 | 0.90 | 20 | 5 |
| AT-CEM50-1 | M 50 | 50 | 39.00 | 55.00 | 60.00 | 25 - 31 | 0.80 | 20 | 5 |
| AT-CEM63 | M 63 | 63 | 46.00 | 65.00 | 70.50 | 37 - 44 | 1.00 | 20 | 5 |
| AT-CEM63-1 | M 63 | 63 | 46.00 | 65.00 | 70.50 | 29 - 35 | 0.90 | 20 | 5 |
