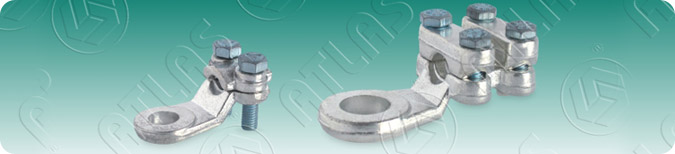

Mechanical Cable Lugs (Bolted with 2 & 4 Screw )

  Home Atlas Metal Industries Pvt. Ltd.  /  Cable Lugs  /  Mechanical Cable Lugs (Bolted with 2 & 4 Screw )

Mechanical Cable Lugs (Bolted with 2 & 4 Screw )

cable-lugs-mechanical-cable-lugs-bolted-with-2screws-4screws
Material: Brass
Finish: Electro Tinned
Screws: Zinc Plated Steel
CODE NO. CABLE MM2 TYPE SCREW SIZE CONNECTORS AREA
AT-MCL-10 10.0 2 Bolt M-5 4.0
AT-MCL-16 16.0 2 Bolt M-5 5.1
AT-MCL-25 25.0 2 Bolt M-5 6.3
AT-MCL-35 35.0 2 Bolt M-5 7.5
AT-MCL-50 50.0 4 Bolt M-6 9.5
AT-MCL-75 75.0 4 Bolt M-6 11.0
AT-MCL-100 100.0 4 Bolt M-6 13.0
AT-MCL-120 120.0 4 Bolt M-6 14.0
AT-MCL-170 170.0 4 Bolt M-8 16.0
AT-MCL-200 200.0 4 Bolt M-8 17.0
AT-MCL-240 240.0 4 Bolt M-8 18.0
AT-MCL-300 300.0 4 Bolt M-10 21.0
