A2 CXT Cable Glands

A2 CXT Cable Glands | A1 A2 Cable Gland | ATCAB Atlas Metal - cable-gland-a2-cxt-A2 CXT Cable Glands

Technical Details

Size	:	20mmto 90mm S & L		Material	:	Brass BS 2874 CZ121 Pb3
Standard	:	BS 6121		Options Threads	:	METRIC, NPT, BSP & PG.
IP Rating	:	IP66 & 68		Finish	:	Natural Brass Finish, Nickel Finish.
Application	:	Outdoor or Indoor for use with all types of Unarmoured Cable.		Operating Temp.	:	Standard seals -20° C to +80° C.
Function	:	A2 CXT type glands provide a single pull resistant seal on the outer sheath of unarmoured cable.		Accessories	:	Matching Accessories available like PVC Shrouds, Lock Nuts & Earth Tag.

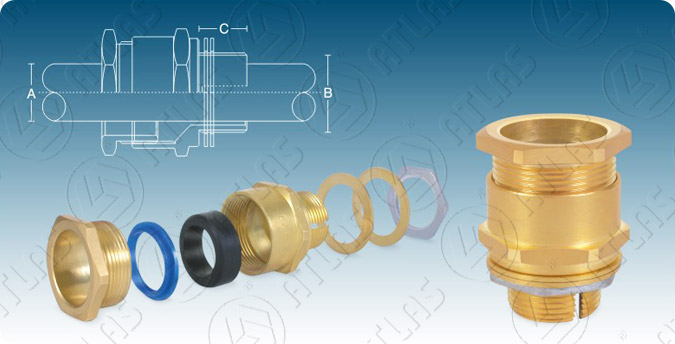

CODE NO.	GLAND SIZE	THREAD SIZE ‘C’		MINIMUM LENGTH OF THREAD ‘D’	CABLE RANGE ‘A’
CODE NO.	GLAND SIZE	METRIC	NPT	MINIMUM LENGTH OF THREAD ‘D’	MIN.	MAX.
AT-CXT-20S	A2 CXT 20S	M20	½”	10	11.50	8.00
AT-CXT-20L	A2 CXT 20L	M20	½”	10	13.50	11.00
AT-CXT-25S	A2 CXT 25S	M25	3/4″	10	16.50	13.00
AT-CXT-25L	A2 CXT 25L	M25	3/4″	10	19.50	16.00
AT-CXT-32L	A2 CXT 32L	M32	1″	10	25.50	19.00
AT-CXT-40S	A2 CXT 40S	M40	1¼”	15	29.00	23.00
AT-CXT-40L	A2 CXT 40L	M40	1¼”	15	32.00	25.00
AT-CXT-50S	A2 CXT 50S	M50	1½”	15	37.00	31.50
AT-CXT-50L	A2 CXT 50L	M50	2″	15	43.00	36.50
AT-CXT-63S	A2 CXT 63S	M63	2″	15	50.00	42.50
AT-CXT-63L	A2 CXT 63L	M63	2½”	15	55.00	49.50
AT-CXT-75S	A2 CXT 75S	M75	2½”	15	61.00	54.50
AT-CXT-75L	A2 CXT 75L	M75	3″	15	67.00	60.50
AT-CXT-90	A2 CXT 90	M90	3″	20	78.00	65.00
