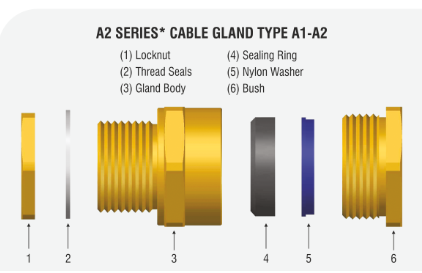

ATCAB’ CABLE GLAND A2 Series’, Type: A1-A2 The A2 Series* single compression cable glands maintain Flameproof Exd and Increased Safety Exe methods of explosion protection IP67. Type Al-A2 is intended for all types unarmoured and braid armoured cable. The A2 Series* cable gland type A1-A2 consists of Lock Nut, Thread Seals, Gland Body, Sealing Ring, Nylon Washer and Bush. For use with Electrical apparatus in Zone 1, 2, 21, 22 areas. Groups IIA, 11B, IIC,IIIC


Design Standard : EN EN 60079-1:2014, EN 60079-31:2014, BS6121, EN62444:2013, IEC 60529

Certification: II 2 GD Exdb Ilc  Gb/Exe Ilc Gb Extb IIIC Db IP67

Certificate: T117ATEX 822 X- Ex Notified Body No. 1354

Ingress Protection: IP 67

Gland Marking

Operating Tem. : The Standard cable sealing washer (EPDM Elastomeric sealing ring) used and is suitable for operating                               temperature – 60t Tamb +1250C


Materials: BRASS: 2874 CZ121 /IS 319 gr.l Stainless Steel : ASTM A314 gr. 304/316 L Mild Steel

Threads: ISO Metric National pipe Thread (NPT) British Standard pipe (BSP)  Imperial (ET)

Seals: T117ATEX 822 X- Ex Notified Body No. 1354

Plating:    Brass Finish / Nickel Finish /Chrome Finish

Accessories: Lock Nut, Earth Tag, IP Nylon Washer, Serrated Washer, PVC / LSF Shroud.
