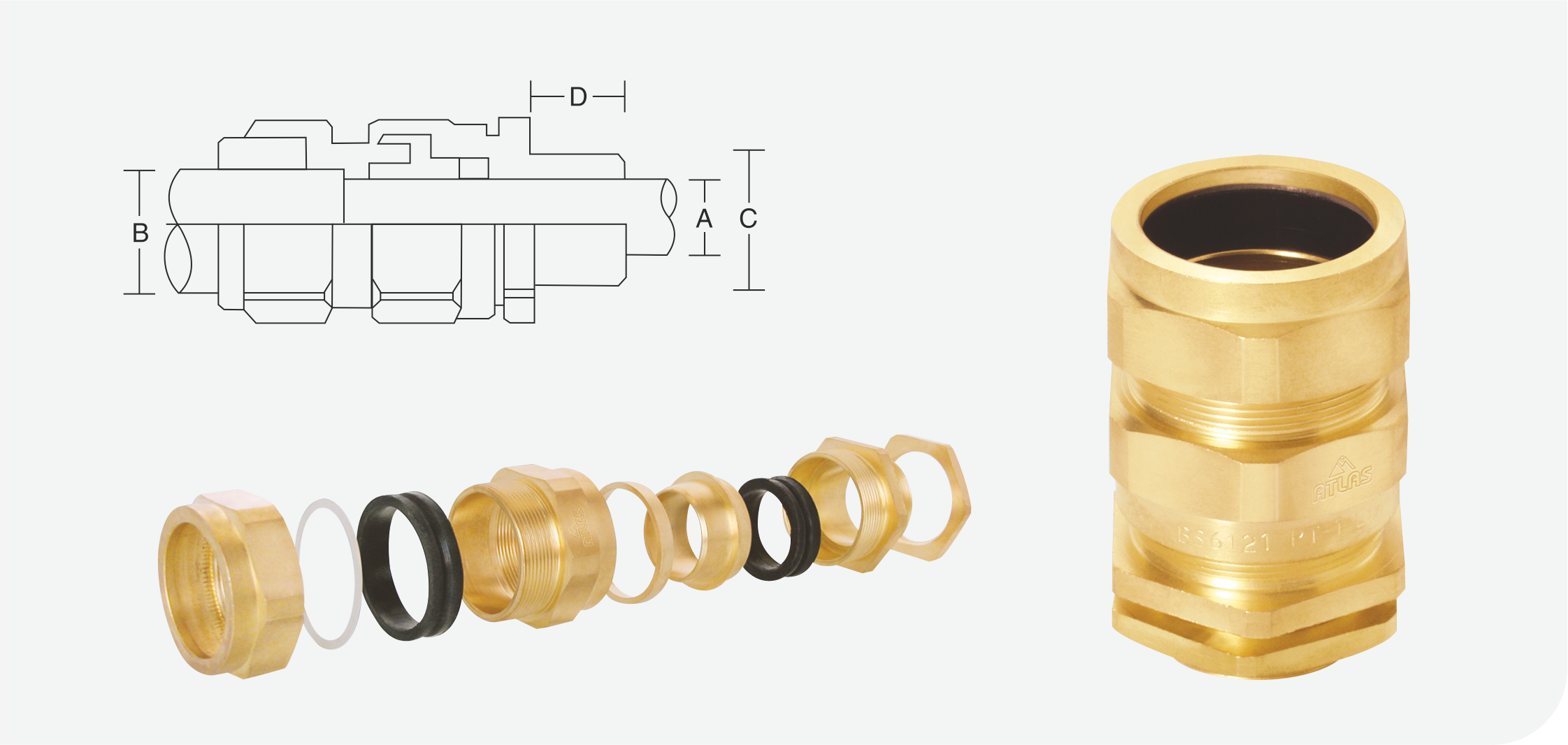

E1W are brass cable glands commonly used in industrial applications for cable management. E1W Cable Gland is used for indoor or outdoor use with all types of SWA Cable, providing a seal on the inner sheath, a seal on the outer sheath and an armour-specific armour clamp for armoured cable.
Size : 20mm to 100 mm S & L
Standard : BS 6121, IEC 62444, EN 62444, EN50262
IP Rating :IP65
Application :For indoor or outdoor use with all types of SWA Cable.
Function : EIW type glands provide a seal on the inner sheath, a seal on the outersheath and an armour specificarmour clamp for armoured cable.The armour clamp provides an electrical bond between the armour cable and the gland.
Material : Brass BS 2874 CZ121 Pb3.
Optional Threads : Metric, NPT, BSP & PG.
Finish : Natural Brass Finish, Nickel Finish.
Operating Temp : Standard seals -200 C to +800 C.
Accessories : Lock Nut, Earth Tag, IP Nylon, Washer,Serrated Washer,PVC / LSF Shroud.
| CODE No. | GLAND SIZE | THREAD SIZE 'C' | MINIMUM LENGTH OF THREAD 'D' | CABLE RANGE 'A' | CABLE RANGE 'B' | |||
|---|---|---|---|---|---|---|---|---|
| Metric | NPT | Min | Max | Min | Max | |||
| AT-E1-20S | E1W 20S | M 20 | 1/2" | 15 | 8.80 | 11.70 | 11.80 | 16.00 |
| AT-E1-20L | E1W 20L | M 20 | 1/2" | 15 | 11.40 | 14.00 | 14.00 | 20.80 |
| AT-E1-25S | E1W 25S | M 25 | 3/4" | 15 | 13.00 | 16.00 | 18.00 | 24.00 |
| AT-E1-25L | E1W 25L | M 25 | 3/4" | 15 | 17.30 | 20.00 | 20.30 | 27.40 |
| AT-E1-32S | E1W 32S | M 32 | 1" | 10 | 20.00 | 23.00 | 24.50 | 31.00 |
| AT-E1-32L | E1W 32L | M 32 | 1" | 15 | 24.20 | 26.30 | 26.50 | 33.50 |
| AT-E1-40S | E1W 40S | M 40 | 1-1/4" | 15 | 26.00 | 29.00 | 30.40 | 36.00 |
| AT-E1-40L | E1W 40L | M 40 | 1-1/4" | 15 | 29.50 | 32.10 | 33.20 | 40.00 |
| AT-E1-50S | E1W 50S | M 50 | 1-1/2" | 15 | 33.00 | 38.10 | 40.00 | 46.50 |
| AT-E1-50L | E1W 50L | M 50 | 2" | 15 | 38.00 | 44.00 | 44.00 | 52.60 |
| AT-E1-63S | E1W 63S | M 63 | 2" | 20 | 44.00 | 50.50 | 50.00 | 59.00 |
| AT-E1-63L | E1W 63L | M 63 | 2-1/2" | 20 | 50.00 | 56.00 | 56.00 | 66.00 |
| AT-E1-75S | E1W 75S | M 75 | 2-1/2" | 20 | 56.00 | 62.00 | 63.50 | 71.00 |
| AT-E1-75L | E1W 75L | M 75 | 3" | 20 | 62.00 | 68.50 | 69.00 | 78.00 |
| AT-E1-90S | E1W 90S | M 90 | 3" | 20 | 65.00 | 80.00 | 84.00 | 96.00 |
| AT-E1-90L | E1W 90L | M 90 | 3-1/2" | 20 | 82.00 | 90.00 | 84.00 | 102.00 |
Also available in kit packing as per the specification. All dimensions are in millimeter
