MARINE Type Cable Glands

Marine cable glands are specifically designed for use in marine and offshore environments, where there is a need for robust and reliable cable management solutions. Marine cable glands are used for both outdoor and indoor use with all types of braided or unarmoured marine electrical cable fittings.

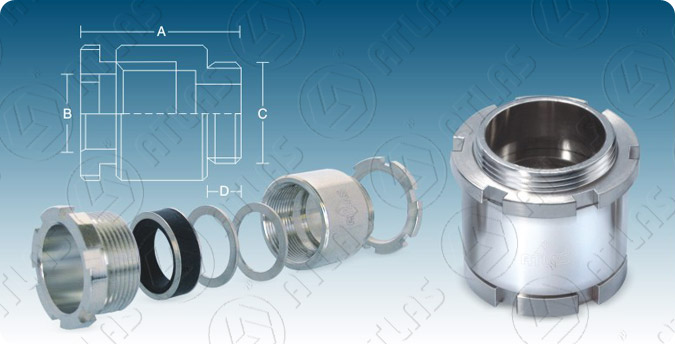

cable-gland-marine-type-MARINE Type Cable Glands
Technical Details
Size : 10mm to 70mm Options Threads : ISO Metric, NPT, BSP & BSPT.
IP Rating : IP54 & 66 Finish : Chrome Finish, Brass Finish, Nickel Finish.
Application : Outdoor or indoor for use with all type of braided or unarmoured Marine electrical cable fittings. Operating Temp. : Standard Seals -20° C to +80° C.
Material : Brass BS 2874 CZ121 Pb3
CODE NO. GLAND SIZE ‘A’ ‘B’ ‘C’ THREAD LENGTH (IN MM) ‘D’
AT-MCG-10 10 45.00 10.00 3/8″ BSP 11
AT-MCG-15 15 50.00 15.00 ½” BSP 10
AT-MCG-20 20 53.00 20.00 3/4″ BSP 11
AT-MCG-25 25 60.00 25.00 1″ BSP 12
AT-MCG-30 30 65.00 30.00 1¼” BSP 12
AT-MCG-35 35 70.00 40.00 1½” BSP 12
AT-MCG-40 40 70.00 40.00 1½” BSP 12
AT-MCG-45 45 85.00 50.00 2″ BSP 12
AT-MCG-50 50 85.00 50.00 2″ BSP 12
AT-MCG-55 55 87.00 60.00 2½” BSP 12
AT-MCG-60 60 88.00 60.00 2½” BSP 12
AT-MCG-65 65 100.00 70.00 3″ BSP 14
AT-MCG-70 70 110.00 70.00 3″ BSP 14
